SMS interworking function

The Slicce SMS-IWF bridges SMS technologies across 3G, 4G, 5G, and enterprise networks, enabling seamless message exchange between different protocols and interfaces.

Supporting SMS over NAS, SMS over IP, GSM-MAP, SMPP, and 5G service-based interfaces, it connects existing SMSCs to modern messaging environments through flexible, programmable protocol interworking.

Capabilities

Multiple SMS Protocols. One Interworking Engine

Multi-Protocol SMS Interworking

Converts messages across GSM-MAP, SMS over NAS, SMS over IP, 5G SMS, SMPP, and supported messaging APIs.

Programmable Message Flows

Customize message handling, routing, and protocol conversion through lightweight scripting.

Application-Level Firewall

Filter unwanted or unexpected messages through configurable allow/block rules.

Adjustable Traffic Rate Control

Protect SMSC resources by controlling inbound message rates.

Bridging SMS Technologies for Mobile Operators.

Brings SMS over NAS, SMS over IP and SMS over 5G SBI to legacy SMSC

The Slicce SMS-IWF enables operators to interconnect existing SMSCs with 4G and 5G messaging environments through protocol conversion and mediation.

Supporting SMS over NAS, SMS over IP, and 5G service-based interfaces, it bridges modern messaging technologies with traditional GSM-MAP-based SMS infrastructure.

Its programmable architecture supports flexible message routing and interoperability across different network generations.

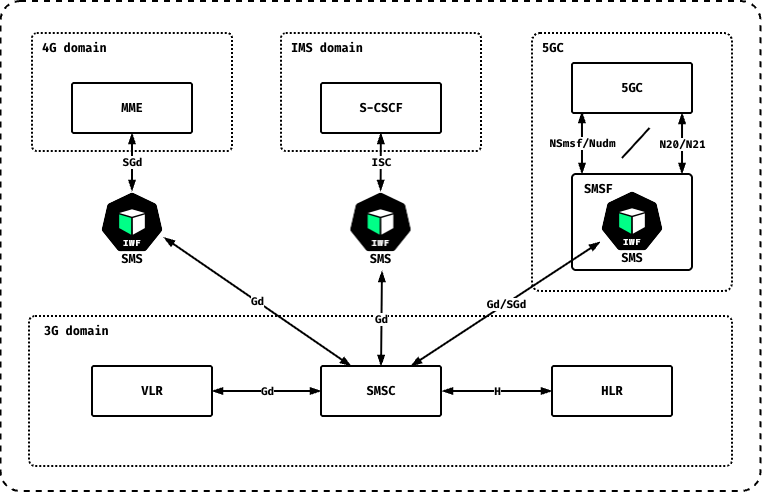

SMS-IWF for Operators: in the 4G domain, the MME connects over SGd to the IWF; in the IMS domain, the S-CSCF connects over ISC to the IWF; in the 5GC, the SMSF connects over NSmsf/Nudm and N20/N21 to the 5GC and hosts its own IWF; all three IWF instances connect over Gd/SGd to the SMSC in the 3G domain, which also connects to the VLR over Gd and the HLR over H.

Connecting Enterprise Messaging to Mobile Networks

Bridges the mobile network with External Short Messages Entities

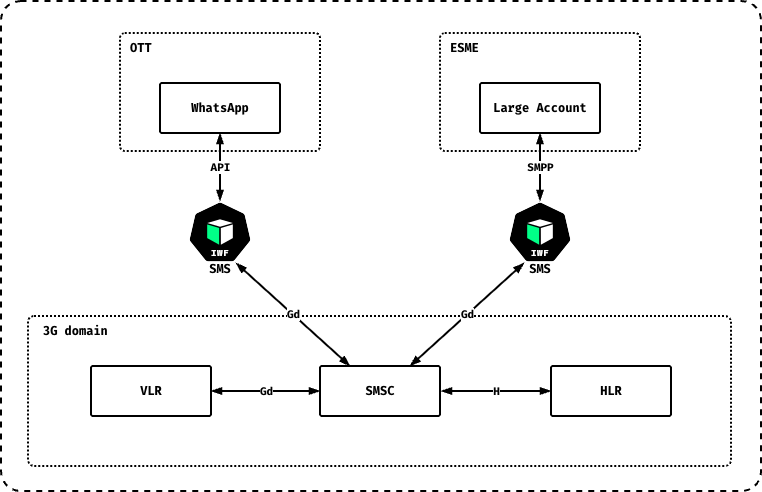

SMS-IWF for ESME: WhatsApp in the OTT domain connects over API to an IWF instance, and Large Account in the ESME domain connects over SMPP to another IWF instance; both connect over Gd to the SMSC in the 3G domain, which also connects to the VLR over Gd and the HLR over H.

The Slicce SMS-IWF bridges mobile messaging infrastructure with External Short Message Entities (ESMEs) through the SMPP protocol.

Supporting SMPP v3.2, v3.4, and v5.0, it enables enterprise applications and messaging platforms to exchange SMS traffic with mobile networks through flexible protocol interworking and message routing.

Technical specifications

SCTP

RFC 2960

RFC 3309

MTP

ITU-T Q.700 through Q.707, Q.781, Q.782, Q.791

M2PA

RFC 4165

M3UA

RFC 3332

SCCP

ITU-T Q.711 through Q.714 Connectionless Class 0 & 1

TCAP

ITU-T Q.700 through Q.707, Q.781, Q.782, Q.791

MAP

ETSI ETS 300 374-1

ITU-T Q.1218 CS-1R

HTTP/2

RFC 9113

RFC 7541

SIP

3GPP TS 24.229 IMS SIP extensions

TISPAN ES 283 003 IMS extensions

IETF RFC 3266 support for IPv6 in SDP

IETF RFC 3261 (Session Initiation Protocol - SIP)

IETF RFC 3262 (Reliability of Provisional Responses in SIP)

IETF RFC 3263 (Locating SIP Servers)

IETF RFC 2327 (Session Description Protocol - SDP)

IETF RFC 3264 (An Offer/Answer Model with SDP)

IETF RFC 3265 (SIP Specific Event Notification)

IETF RFC 3266 (Support for IPv6 in SDP)

IETF RFC 1889 and 1890 (RTP/RTCP)

IETF RFC 3329 SIP security agreement

IETF RFC 3455 Private headers

Diameter

IETF RFC 4006 Diameter Credit-Control Application

IETF RFC 3588 / 6733 Diameter base Protocol

3GPP TS 32.299 Telecommunication management; Charging management; Diameter charging applications.

3GPP TS 29.338 Diameter based protocols to support Short Message Service capable MME.

SMPP

SMPP v3.2

SMPP v3.4

SMPP v5.0
