SCS API exposure function
The Signaling Capture Services API Exposure Function exposes APIs that allow to generate on-demand network captures on a specific worker node. The function can also be configured to generate ongoing metrics and KPIs as well as Call Detail Records (CDRs) to give visibility on the behavior and the performance of network functions hosted by the same worker node.

Capabilities
Deep Visibility. Zero Disruption.
Observability, tracing, and security
Leverages eBPF for Kernel-level packet capture.
Non-intrusive
Does not interfere with other applications running on the same node. No application-level integration required.
Generates KPIs
Generates and exposes Key Performance Indicators (KPIs) for telecom interfaces at the node level.
Generates CDRs
Generates Call Detail Records (CDRs) for telecom interfaces at the node level.
On-demand live capture
Exposes APIs to perform on-demand packet captures at the node level.
Rolling pcap captures
Exposes APIs to perform rolling packet captures at the node level.
Open architecture
Supports additional protocol parsers and decoders.
Architecture
Every Node. One Clear View.

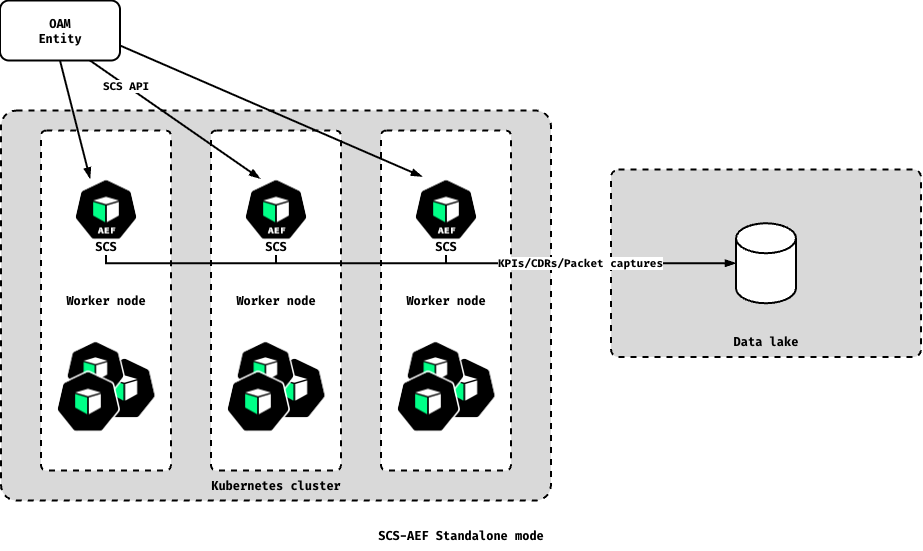

Standalone mode
Standalone SCS-AEF instance per worker node.

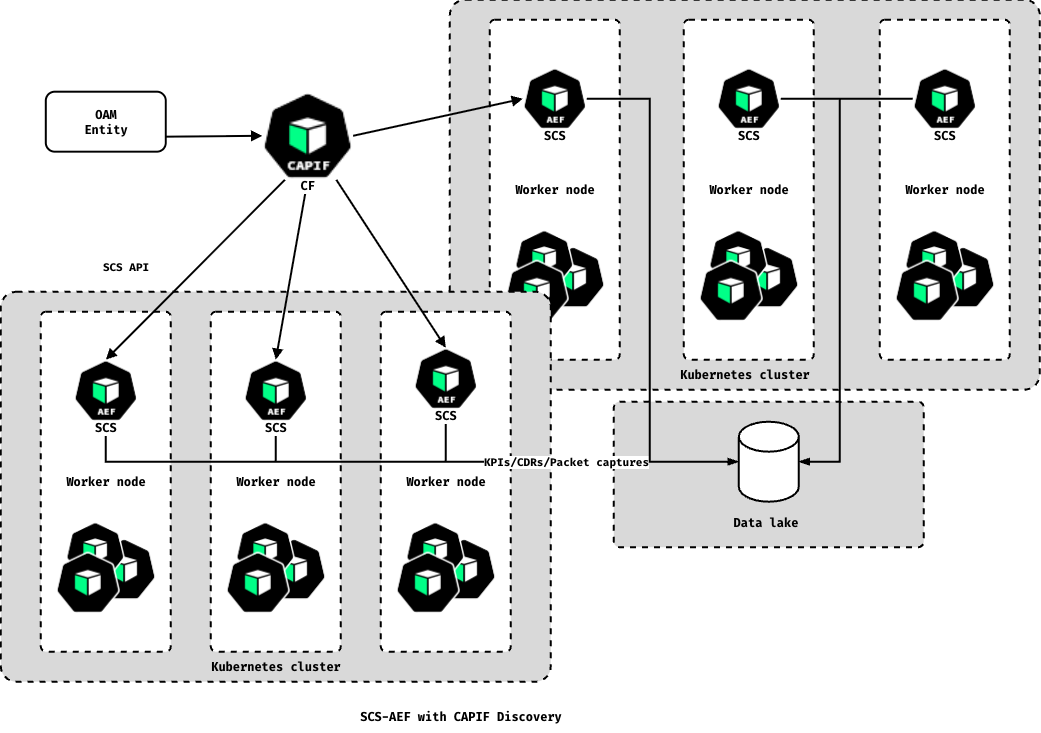

CAPIF-Based Discovery Mode
Aggregated SCS-AEF instance control with CAPIF-CF discovery.

Technical specifications
SCTP
RFC 2960
RFC 3309
MTP
ITU-T Q.700 through Q.707, Q.781, Q.782, Q.791
M2PA
RFC 4165
M3UA
RFC 3332
SIP
3GPP TS 24.229 IMS SIP extensions
TISPAN ES 283 003 IMS extensions
IETF RFC 3266 support for IPv6 in SDP
IETF RFC 3261 (Session Initiation Protocol - SIP)
IETF RFC 3262 (Reliability of Provisional Responses in SIP)
IETF RFC 3263 (Locating SIP Servers)
IETF RFC 2327 (Session Description Protocol - SDP)
IETF RFC 3264 (An Offer/Answer Model with SDP)
IETF RFC 3265 (SIP Specific Event Notification)
IETF RFC 3266 (Support for IPv6 in SDP)
IETF RFC 1889 and 1890 (RTP/RTCP)
IETF RFC 3329 SIP security agreement
IETF RFC 3455 Private headers
Diameter
IETF RFC 4006 Diameter Credit-Control Application
IETF RFC 3588 / 6733 Diameter base Protocol
3GPP TS 32.299 Telecommunication management; Charging management; Diameter charging applications.
3GPP TS 29.338 Diameter based protocols to support Short Message Service capable MME.
SMPP
SMPP v3.2
SMPP v3.4
SMPP v5.0
